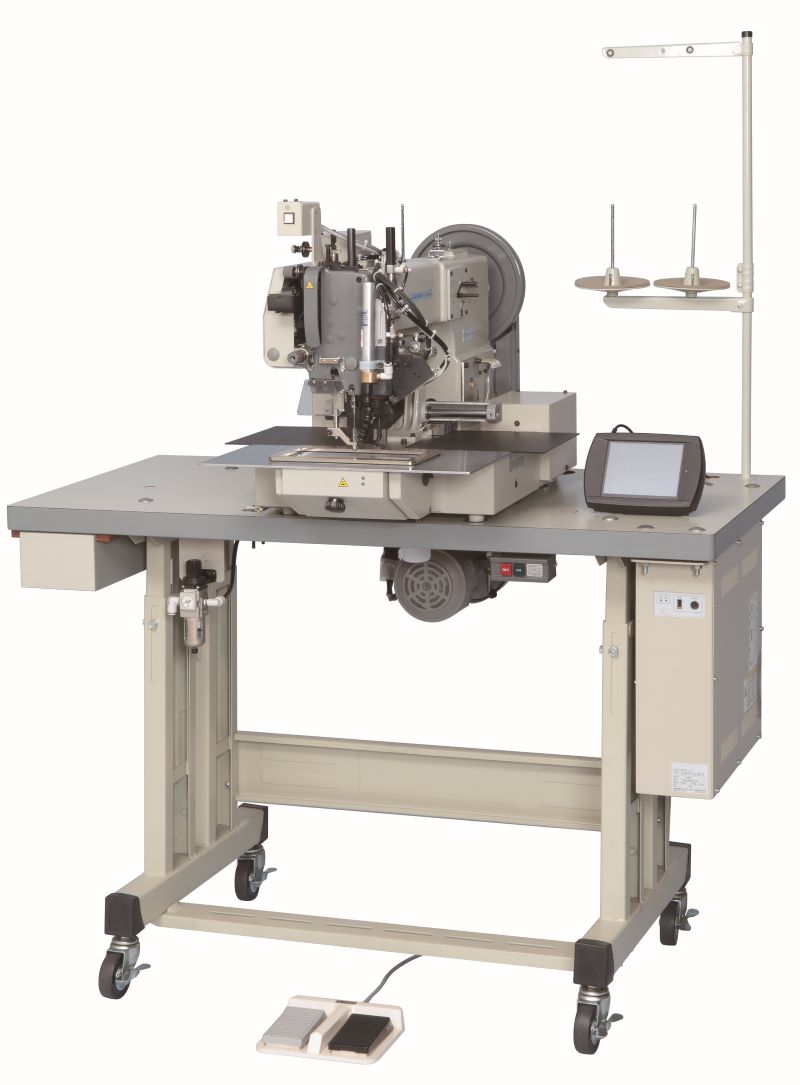

PLK-G2008H Heavy Duty Programmable Sewing Machine
MITSUBISHI PLK-G2008H Heavy Duty Programmable Sewing Machine, 200mm x 80mm The PLK-G2008-H machine is designed to handle heavy webbing and extra heavy thread. This electronically controlled pattern sewing machine, with 200 x 80 mm sewing area, and its lower and upper hot knife thread cutting system is designed to handle extra heavy ...
MITSUBISHIPLK-G2008H Heavy Duty Programmable Sewing Machine
MITSUBISHI PLK-G2008H Heavy Duty Pattern Sewing
PLK-G2008H Heavy Duty Programmable Sewing Machine

MITSUBISHI

PLK-G2008H Heavy Duty Programmable Sewing Machine

Item #: PLK-G2008H

Specifications
Item Spec
Stitch Type
Single Needle Lockstitch
Max. Number of Sewing Patterns Possible
255 (Internal Memory); 224 (Floppy Disk)
Sewing Area
(X) 7 7/8" x (Y) 3 1/8 “
Thread Trimming Method
Upper and Lower Hot Knife
Max. Sewing Speed
700 RPM
Sewing Speed Selection
200
Feeding System
Intermittent
Stitch Length
0.1
Pattern Storage
Internal Memory or Floppy Disk
Max. Number of Stitches
8,000 Per Pattern
Scale Up/Scale Down
10
Measurement
W(1200mm) D(780mm) H(1320mm)
Presser Foot
Stepping Motor Controlled
Hook
Barrel Type Shuttle
X/Y Drive
Timing Belt
Needle
Schmetz 794 Size 26 (Standard)
Needle Bar Stroke
56.6mm
Work Holder Lift
Max. 20mm
Presser Foot Lift
Max. 16mm
Pattern Input
Touch Screen
Power
220 Volt 3 Phase or Single Phase; 110 Volt (Optional)
Clamp (Air)
Single or 2-Stage
Total Weight (Net)
192kg
General
Brand
MITSUBISHI
Item #
PLK-G2008H
Dimensions (L/W/H)
1x1x1
Weight
1 lbs
MSRP
$0.10
Description

MITSUBISHI PLK-G2008H Heavy Duty Programmable Sewing Machine, 200mm x 80mm

The PLK-G2008-H machine is designed to handle heavy webbing and extra heavy thread. This electronically controlled pattern sewing machine, with 200 x 80 mm sewing area, and its lower and upper hot knife thread cutting system is designed to handle extra heavy thread. The extra large bobbin permits greater production between bobbin charges.
X-Y Stepping motor with encoder.
Features capability for stitching suspension fittings and super-thick safety belts.

Dema sewing machines offers turn-key solutions on all product we sell. If you have any questions on this product please call us at 1-888-492-5553.

  • 7 7/8" x 3 1/8" (200mm x 80mm) Field Size
  • Shuttle Hook
  • Hot Knife Thread Cutter
  • Touch Screen Programmer / Control Panel Included
  • Complete with Table and Stand - Fully Assembled
  • This machine is designed for sewing heavy duty materials with thick thread.
  • Ideal for Military Grade Webbing, Cargo Straps, Seat Belts, etc. Sew multiple layers with ease. Box, Box-X, W stitches...this machine will handle it all.
